Types Of Scaffolding Coupler Scaffold Pipe Clamp

scaffolding clamp is a device used at a joint between pipes on a scaffolding structure to secure those pipes in place. Scaffolding structures are used at construction sites to allow workers to climb up to higher levels safely and securely, and the scaffold is usually made from strong, high-grade metal such as steel. Each steel pipe must be affixed to another to create a sturdy structure, and at every joint, a scaffolding clamp can be used to create an angle or a straight line and tightly secure the components for use.
Min.Order Quantity: One container
Production time: usually 25 days
Port: Xingang Tianjin Port in China
Payment Terms: L/C,D/A,D/P,T/T
Standard: EN 74-1:2005; EN 74-2:2009; AS/NZS 1576.2:2009; BS 1139-2.2:2009+A1:2015; ANSI/SSFI SC100-5/05; GB 15831-2006; GB 24910-2010.

Category：

Steel fittings

WhatsApp：

8613920018539

Send email to us

Types Of Scaffolding Coupler Scaffold Pipe Clamp

Ringlock Scaffolding

Scaffolding Coupler

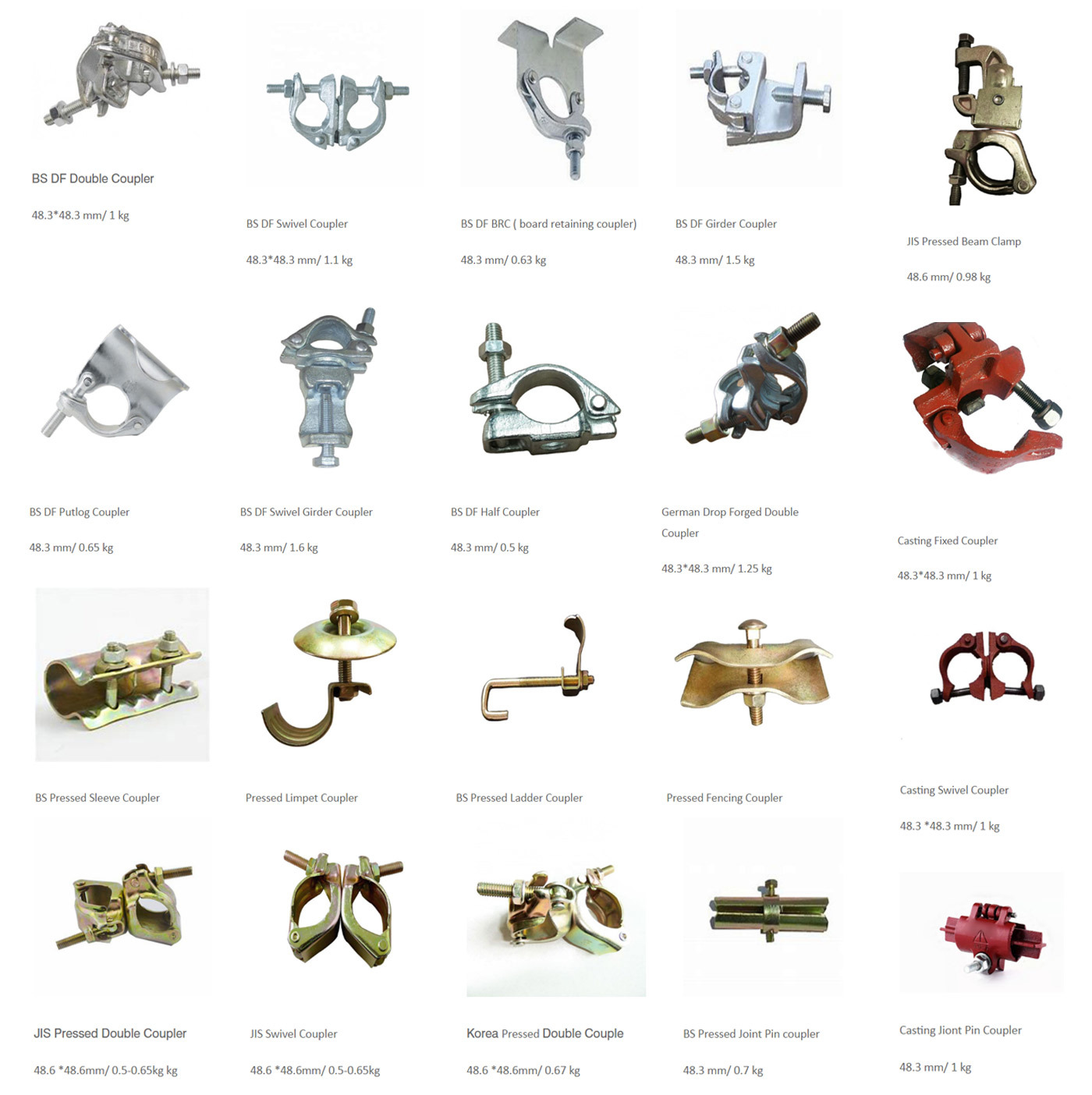

Scaffolding Couplers Size Chart:

For other sizes, contact with us directly.

Product Name	Standard Type	Craft Type	Outer Diameter	U.W/kg
double coupler	British(BS)	Drop Forged	48.3mm	1
swivel coupler	British(BS)	Drop Forged	48.3mm	1.1
putlog coupler	British(BS)	Drop Forged	48.3mm	0.65
girder coupler	British(BS)	Drop Forged	48.3mm	1.5
swivel girder coupler	British(BS)	Drop Forged	48.3mm	1.6
borad retaining coupler	British(BS)	Drop Forged	48.3mm	0.63
half coupler	British(BS)	Drop Forged	48.3mm	0.512
sleeve coupler	British(BS)	Drop Forged	48.3mm	1
inner jiont pin coupler	British(BS)	Drop Forged	48.3mm	1.05
ladder coupler	British(BS)	pressed	48.3mm	0.5
limpet coupler	British(BS)	pressed	48.3mm	0.5
double coupler	British(BS)	pressed	48.3mm	0.82
swivel coupler	British(BS)	pressed	48.3mm	1.105
putlog coupler	British(BS)	pressed	48.3mm	0.57
borad retaining coupler	British(BS)	pressed	48.3mm	0.56
half coupler	British(BS)	pressed	48.3mm	0.5
sleeve coupler	British(BS)	pressed	48.3mm	1
inner jiont pin coupler	British(BS)	pressed	48.3mm	0.7
double coupler 110°	JIS	pressed	48.6mm	0.5-0.65
double coupler 60*60	JIS	pressed	60mm	0.5-0.65
swivel coupler 110°	JIS	pressed	48.6mm	0.5-0.65
swivel coupler 48*60	JIS	pressed	48.6*60.5mm	0.5-0.65
beam clamp	JIS	pressed	48.6mm	0.98
inner jiont pin coupler	JIS	pressed	48.6mm	0.67
double coupler 90°	Korea	pressed	48.6mm	0.67
swivel coupler 90°	Korea	pressed	48.6mm	0.65
double coupler	German	Drop Forged	48.3mm	1.25
swivel coupler	German	Drop Forged	48.3mm	1.45
double coupler	Italian	pressed	48.3mm	1.4
swivel coupler	Italian	pressed	48.3mm	1.48
